## Rooms
There are unique QR codes in all rooms that describe the type of room. For house1, the QR codes in each room are as below.
The new QR code blocks will have an encoded string with the room name and the items in the room. The encoded string will start with the room name, then all items, all separated by a whitespace. Room names and item names are guaranteed to be lower case and separated by "-" if they consit of more than one word (eg. "living-room"). This naming follows PDDL's conventions, so you can the room and item names directly when creating your PDDL problem file. The QR code text for house1 is given below.

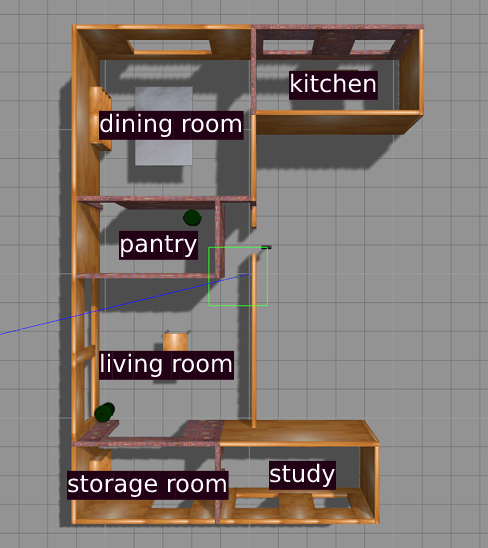

![](images/house1.png)

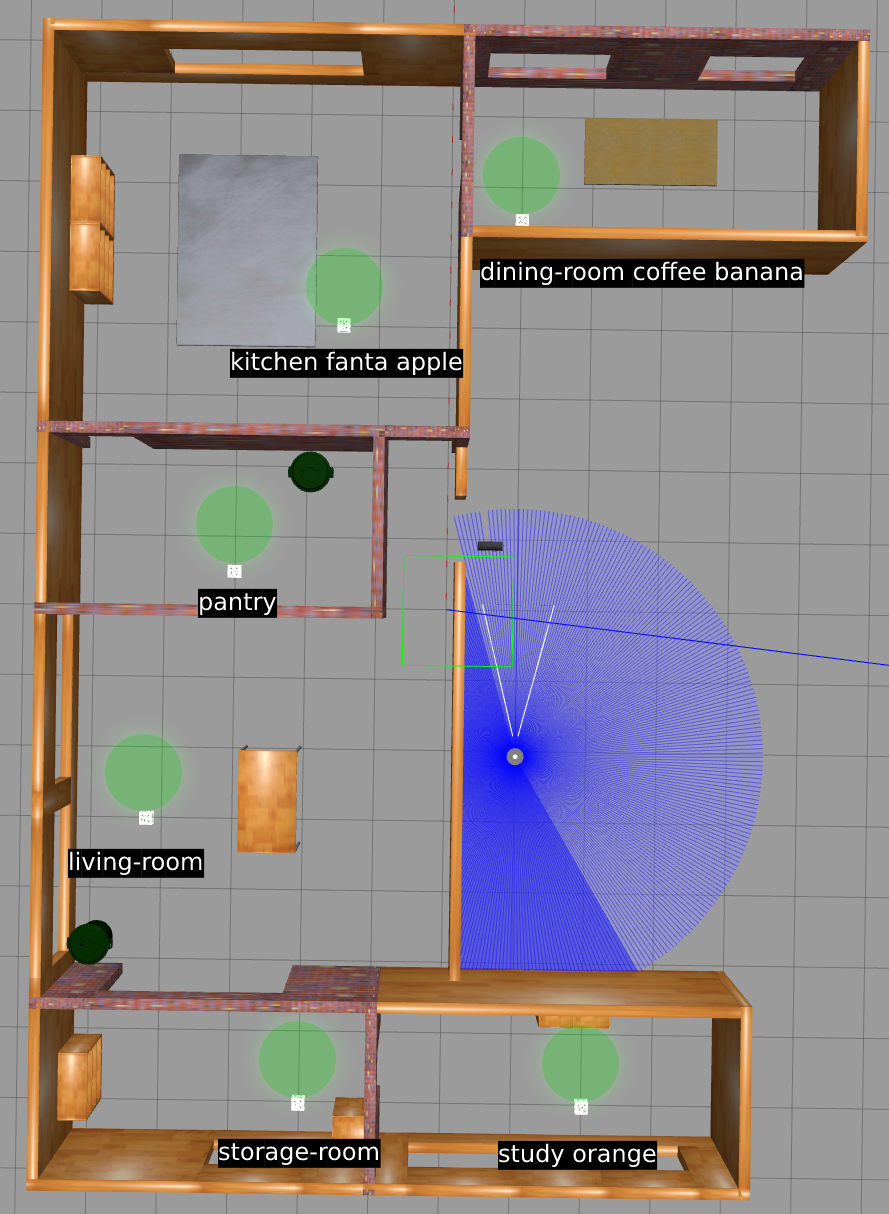

There is one QR code per room, and it is guaranteed that there is always going to be at least one metre free space directly in the map's +x direction from the QR code. Nav2 will fail to navigate the robot exactly to the QR code's position as it considers the QR code as an obstacle. The green area exists to guarantee a space you can request Nav2 to navigate to. This area is depicted with a green circle in the digram.
![](images/house-and-qr-codes.png)
